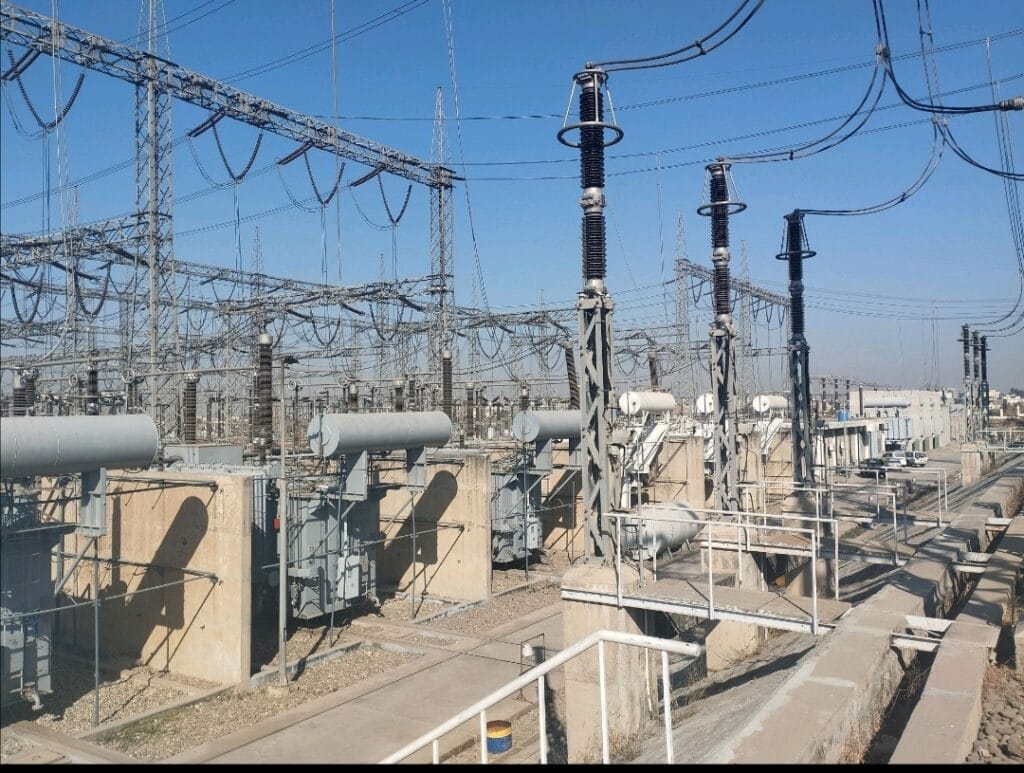

What Is a Power Substation?
A power substation is a stop point on the power grid. Power comes in. The power substation changes it. Then power goes back out.
Why change it? First, power needs to be strong for long trips. But it must be weak and safe by the time it reaches your home.
Think of it like a water valve. A valve can open wide or close down. So it controls how much flows through and how strong the flow is.
Every bit of power you use passes through at least one power substation, somewhere between the plant and your wall socket. This guide covers how that works — in plain terms first, with the technical detail engineers need built right in.
Why Power Substations Matter
A power substation sits at a key spot on the grid. If it fails, trouble spreads fast. The damage can hit one factory. Sometimes it spreads to a whole city block. In the worst case, it reaches an entire region.
Here’s what can go wrong:
- A power spike can harm sensitive devices
- Sometimes a factory line shuts down with no warning
- Other gear can wear out sooner than it should
This is why good design and upkeep matter so much. As a result, power teams treat this as core work, not a side task. In fact, large national grids run tens of thousands of substations, moving trillions of kilowatt-hours a year, non-stop, day and night.
How Does a Power Substation Work?
Power comes in at a very high strength, often between 69 kV and 765 kV. This is good for long trips. But it’s too strong and unsafe for daily use.
So the substation steps it down, in stages, using a transformer. Here’s the science behind it: transformers rely on electromagnetic induction, a principle Michael Faraday described nearly two centuries ago. When alternating current flows through one coil, it creates a changing magnetic field. This field, in turn, induces voltage in a second coil nearby. The ratio of turns between the two coils sets the voltage ratio:
Vp / Vs = Np / Ns (V = voltage, N = coil turns, p = primary, s = secondary)
Engineers pick the turns ratio to get the right voltage for each site. That same ratio also sets the transformer’s vector group (like YNd1 or Dyn11)—a code used to match transformers correctly within a network.
Along the way, the substation also watches for trouble. If a fault hits, it can cut power to that part in a flash, which is typically under 100 milliseconds. This keeps the fault from spreading.
Once power is at a safe level, it leaves the substation and flows out through several feeder lines, each serving a different area.
The voltage journey, in short:
| Voltage Level | Typical Range | Where It’s Used |
|---|---|---|
| Transmission | 69 kV – 765 kV | Long-distance transport |
| Sub-Transmission | 26 kV – 69 kV | Regional or bulk supply |
| Primary Distribution | 4 kV – 35 kV | Local and industrial sites |
| Secondary Distribution | 120 V – 600 V | Homes and end-user gear |
A step-up substation at a power plant does the reverse job, raising voltage for transmission instead of lowering it.
Types of Power Substations
- Transmission substation — Moves large amounts of power over long distances, like a highway for power.
- Distribution substation — The type most people live near. It drops power to a level your home can use.
- Collector substation — Gathers power from wind or solar farms, then boosts it for the main grid.
- Converter substation — Switches power between AC and DC, used for undersea cables or battery storage links.
- Mobile substation — A trailer-mounted unit crews bring in fast when a fixed site fails.
Two Ways to Build a Substation
There are two common styles. Air-Insulated Switchgear (AIS) uses open air for safety in an outdoor yard — simple, but land-hungry. Gas-Insulated Switchgear (GIS) uses SF₆ gas instead of air, so the whole substation fits into a much smaller footprint. This works well in cities or along the coast. A hybrid design mixes compact GIS parts with a normal outdoor yard.
What’s Inside a Power Substation?
- Power transformer — The biggest, priciest item on site, sometimes weighing hundreds of tons. It’s cooled via methods like ONAN, ONAF, OFAF, or ODAF, depending on load.
- Circuit breakers—Cut power the instant trouble hits, then reset once it clears.
- Disconnect switches (isolators) — Open a visible, locked gap for safe crew access, used only after a breaker has already cut the load.
- Surge arresters — Soak up energy from lightning or spikes, often using stacked zinc-oxide blocks.
- Capacitor banks — Improve power factor, helping power move more efficiently.
- Busbars—Thick conductors linking circuits, arranged as single bus, double bus, ring bus, or breaker-and-a-half.
- Instrument transformers (CTs and VTs) — Create safe, low-level signals for relays and meters to read.
- Control and protection panels — Where staff and automated systems watch and run the site, either on location or remotely.
How a Substation Handles Faults
Protection relays watch voltage and current at all times. The moment a reading goes out of bounds, the relay trips the right breaker — usually in under 100 milliseconds.
If the main protection misses a fault, a backup system steps in under the same conditions. Engineers call this full duplication“—a safety net behind the safety net.
Differential protection, meanwhile, compares current entering and leaving a transformer or busbar. A big mismatch means there’s a fault inside, triggering an immediate trip.
Below the substation sits a ground grid, designed to standards like IEEE Std 80. It sends fault current safely into the earth, keeping touch and step voltages within safe limits for workers on site.
Digital substations are the newer approach: fiber-optic cables and standard protocols like IEC 61850 replace miles of copper wiring. As a result, they’re faster to commission and easier to link up with solar, wind, and battery storage.
Frequently Asked Questions
What is a substation? A substation is part of the power grid. It changes, switches, or controls power as electricity moves from a plant to users.
What does a power substation do? It steps voltage up for long-distance transmission, using the ratio Vp/Vs = Np/Ns, and steps it down for safe home and business use.
What’s the difference between a transmission substation and a distribution substation? A transmission substation moves bulk power over long distances at high voltage. A distribution substation, however, drops that power to levels homes and shops can use.
Is it safe to live near a power substation? Yes, in most cases. Distribution substations sit in neighborhoods worldwide, and studies show normal distance poses no health risk. Larger transmission substations tend to sit farther out, mostly for noise and space reasons, not safety.
What is the biggest piece of gear in a substation? The power transformer — it can weigh hundreds of tons and take over a year to build and deliver.
Why are some substations going “digital substation“? As with the wider grid, they swap copper wiring for fiber-optic cables and standard protocols, making them faster to set up and better suited to renewable and battery integration.
